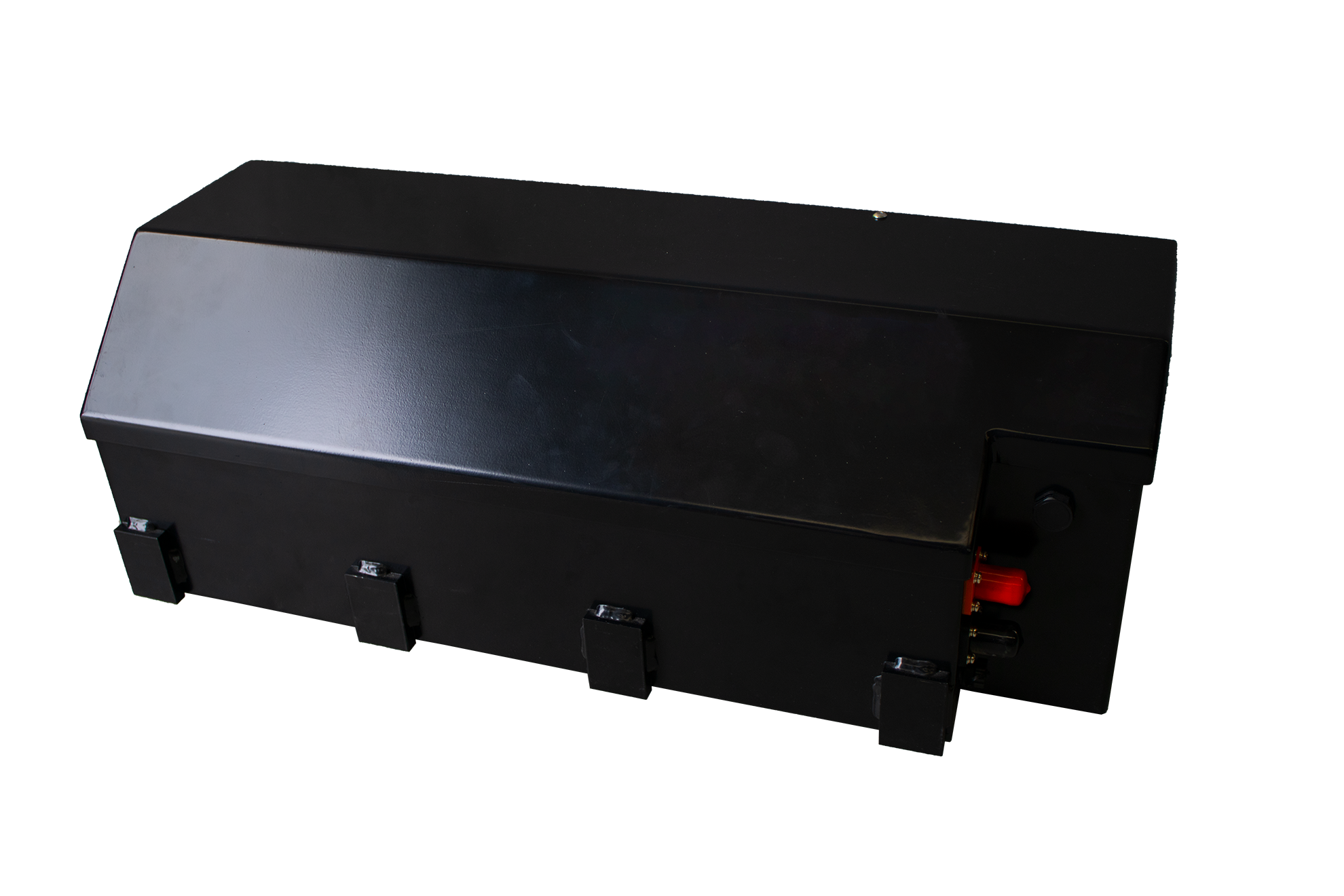

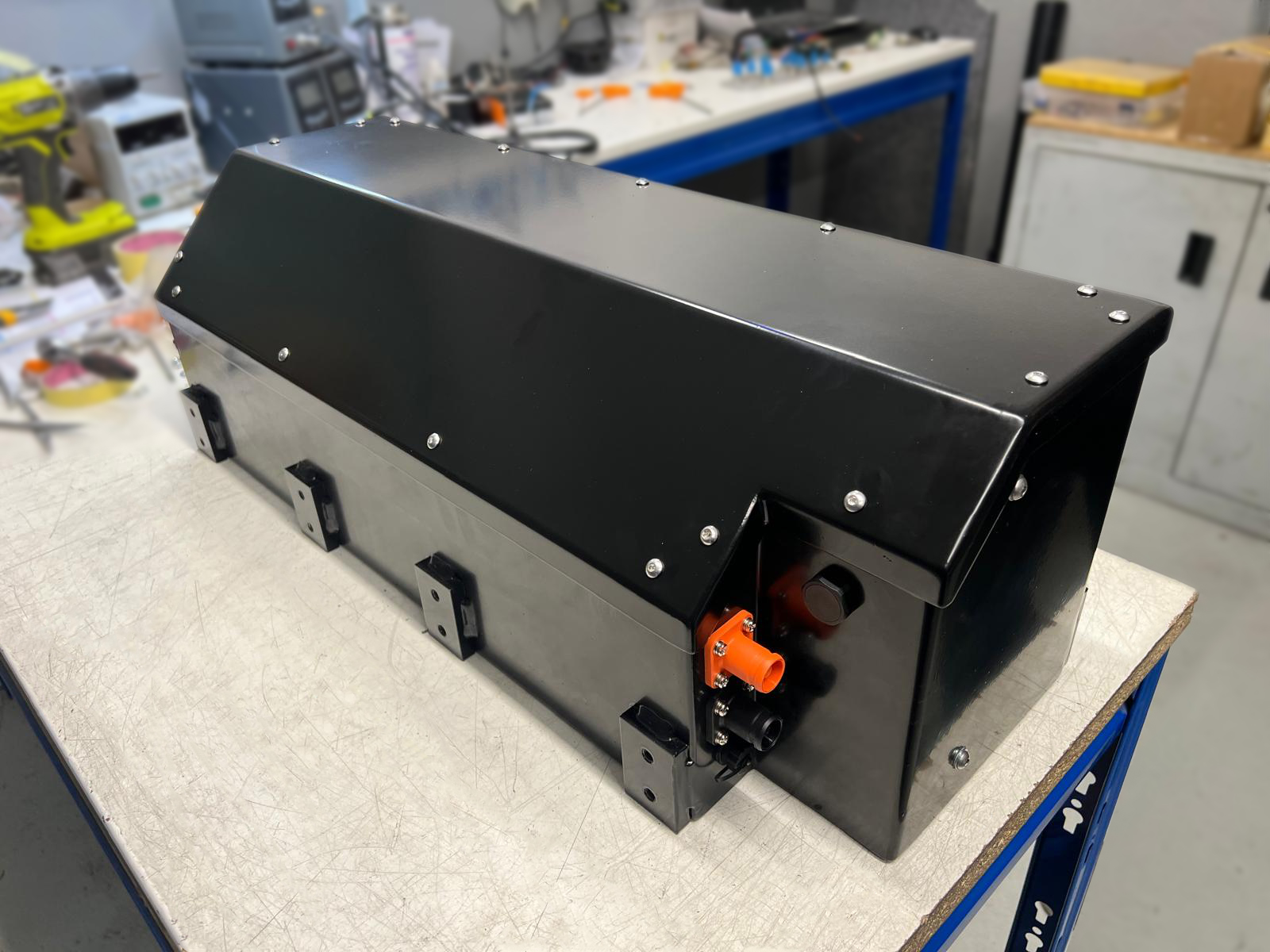

ECE R100 Certified Battery
— Ready for street, ideal for microcars and electric conversions
Homologated and Ready for Purchase
The most compact R100-certified battery on the market
RESS – Technical Specifications
- Battery Type – BP48105OG
- Dimensions – 260 x 245 x 700 mm
- Nominal Capacity – 105 Ah
- Nominal Voltage – 51.2 V
- Nominal Energy – 5.28 kWh
- Weight – 60 ± 1 Kg
Key Features
- ECE R100 Rev.2 certified – Homologatable for M1, N1, L7 and O vehicles
- Compact and versatile – Ideal for retrofit and vintage vehicles
- Integrated safety system – Advanced BMS, fuses and disconnects
- Modular – Scalable starting from 5 kWh
- Made in Italy

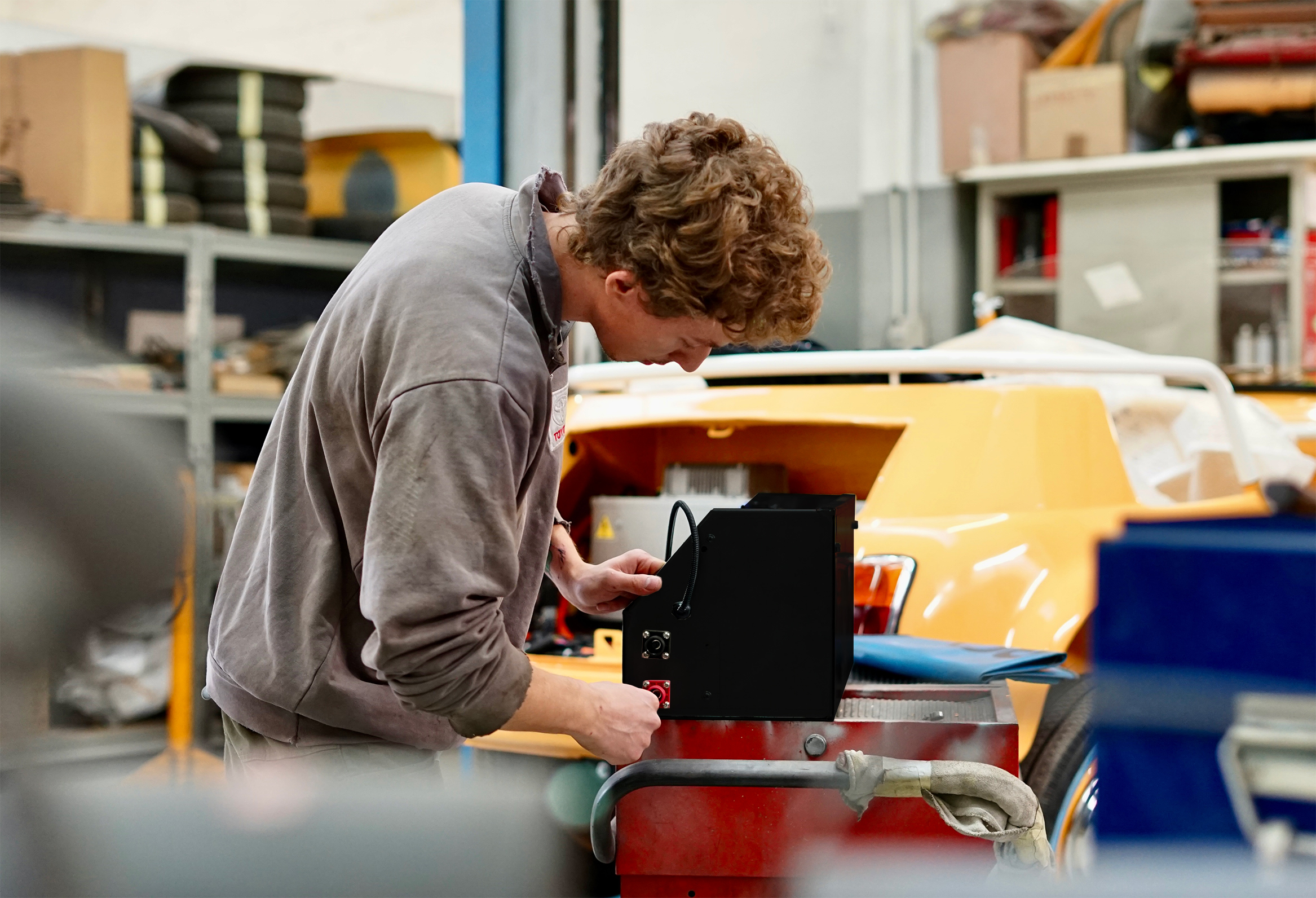

Designed for builders and converters

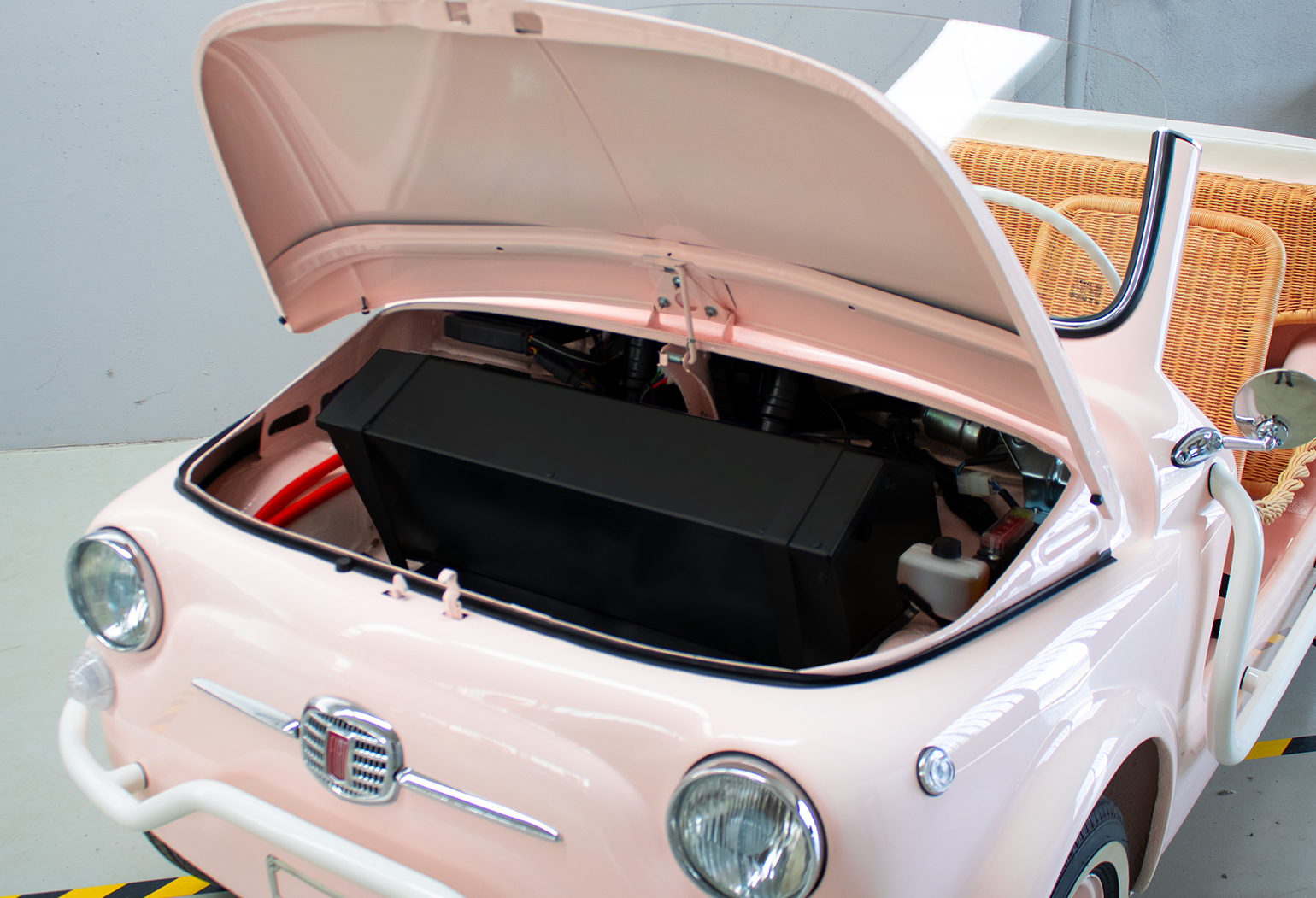

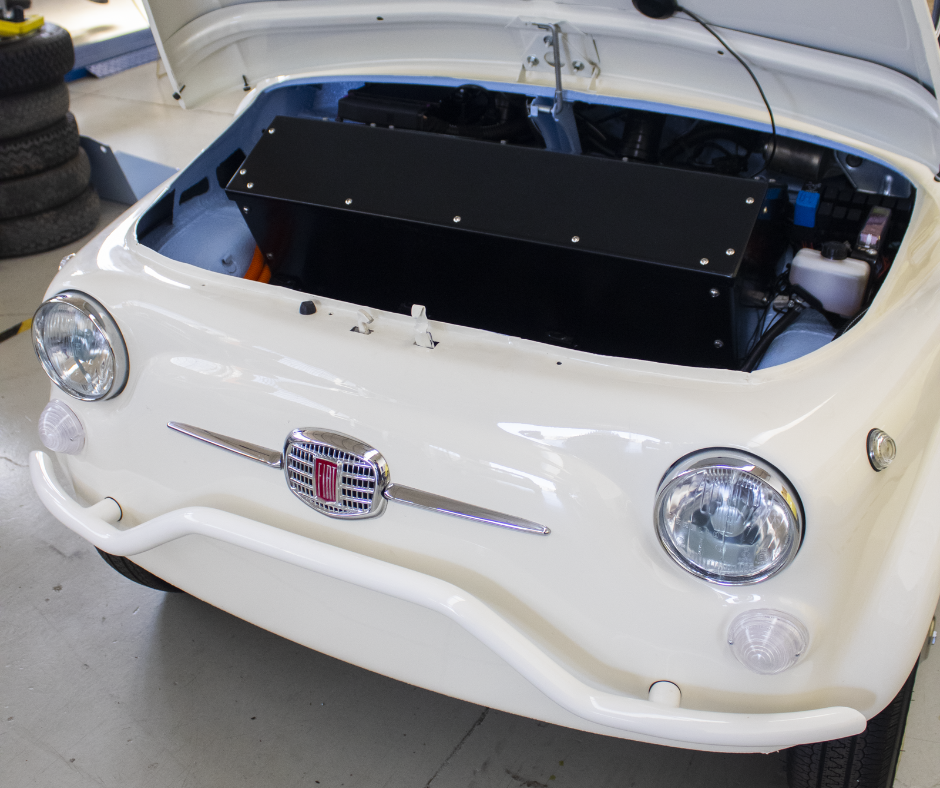

- Retrofit Fiat 500s and others vintage cars
- Electrified modern vehicles
- Light commercial vehicles
- Microcars and quadricycles
- Range extender for Fiat Topolino, Citroen AMI and more
- Photovoltaic systems
Road-ready
Lab-tested UN/ECE-R100
- Vibration Test (9A) – Sinusoidal wave vibration test between 7 Hz and 50 Hz, 3 hours vertically at 10 g
- Thermal Shock & Cycling (9B) – Extreme temperature cycles: -40 °C → +60 °C, 6 hours at each temperature for 5 cycles
- Mechanical Shock (9C) – Shocks up to 28 g for 80 ms using dedicated equipment, simulating impacts
- Mechanical Integrity (Crush) (9D) – Crushing test with 100 kN (~10 tons) force on a 75 mm curved plate
- Fire Resistance (9E) – Direct/indirect fire exposure, at least 130 s under open flame and post-exposure monitoring
- External Short Circuit (9F) – External short circuit (< 5 mΩ) for at least 1 hour to assess protection functionality
- Overload Protection (9G) – Overload test verifying the response of the protection circuit
- Over-Discharge Protection (9H) – Discharge at 1/3 C until activation of over-discharge protection
- Overheating Protection (9I) – Continuous charge/discharge cycles at maximum currents, with gradual temperature increase until system shutdown
- Overcurrent Protection (9J) – Similar to 9G, but focused on excessive current / overcurrent scenarios
